在《WPF 4 DataGrid 控件（基本功能篇）》中我們已經學習了DataGrid 的基本功能及使用方法。本篇將繼續介紹自定義DataGrid 樣式的相關內容，其中將涉及到ColumnHeader、RowHeader、Row、Cell 的各種樣式設置。

ColumnHeaderStyle 屬性

　　一般來講列表頭是用戶首先注意的內容，那么如何在DataGrid 中設計一個美觀的表頭呢。我們既可以在<DataGrid>中通過<DataGrid.ColumnHeaderStyle>來全局定義；也可以針對個別列在<DataGrid.Columns>中通過<DataGridColumn.HeaderStyle>定義。

<DataGrid x:Name="dataGrid" ItemsSource="{Binding}" AutoGenerateColumns="False"
SelectionUnit="CellOrRowHeader" IsReadOnly="True">
<DataGrid.ColumnHeaderStyle>
<Style TargetType="DataGridColumnHeader">
<Setter Property="Background">
<Setter.Value>
<LinearGradientBrush StartPoint="0,0" EndPoint="0,1">
<GradientStop Color="White" Offset="0"/>
<GradientStop Color="Yellow" Offset="0.5"/>
<GradientStop Color="White" Offset="1"/>
</LinearGradientBrush>
</Setter.Value>
</Setter>
<Setter Property="Foreground" Value="Black"/>
<Setter Property="FontSize" Value="13" />
</Style>
</DataGrid.ColumnHeaderStyle>

<DataGrid.Columns>
<DataGridTextColumn Header="Name" Binding="{Binding Name}">
<DataGridColumn.HeaderStyle>
<Style TargetType="DataGridColumnHeader">
<Setter Property="Background">
<Setter.Value>
<LinearGradientBrush StartPoint="0,0" EndPoint="0,1">
<GradientStop Color="White" Offset="0"/>
<GradientStop Color="SkyBlue" Offset="0.5"/>
<GradientStop Color="White" Offset="1"/>
</LinearGradientBrush>
</Setter.Value>
</Setter>
<Setter Property="Foreground" Value="Black"/>
<Setter Property="FontSize" Value="13"/>
<Setter Property="Width" Value="80"/> <Style.Triggers>
<Trigger Property="IsMouseOver" Value="True">
<Setter Property="ToolTip" Value="Sort by Column"/>
</Trigger>
</Style.Triggers>
</Style>
</DataGridColumn.HeaderStyle>
</DataGridTextColumn>

<DataGridTextColumn Header="Age" Binding="{Binding Age}">
<DataGridColumn.HeaderStyle>
<Style TargetType="DataGridColumnHeader">
<Setter Property="Background">
<Setter.Value>
<LinearGradientBrush StartPoint="0,0" EndPoint="0,1">
<GradientStop Color="White" Offset="0"/>
<GradientStop Color="LightGreen" Offset="0.5"/>
<GradientStop Color="White" Offset="1"/>
</LinearGradientBrush>
</Setter.Value>
</Setter>
<Setter Property="Foreground" Value="Black"/>
<Setter Property="FontSize" Value="13"/>
<Setter Property="Width" Value="50"/>
</Style>
</DataGridColumn.HeaderStyle>
</DataGridTextColumn>

<DataGridComboBoxColumn Header="Sex"
SelectedItemBinding="{Binding Sex}"
ItemsSource="{Binding Source={StaticResource sexEnum}}">
<DataGridColumn.HeaderStyle>
<Style TargetType="DataGridColumnHeader">
<Setter Property="Background">
<Setter.Value>
<LinearGradientBrush StartPoint="0,0" EndPoint="0,1">
<GradientStop Color="White" Offset="0"/>
<GradientStop Color="LightPink" Offset="0.5"/>
<GradientStop Color="White" Offset="1"/>
</LinearGradientBrush>
</Setter.Value>
</Setter>
<Setter Property="Foreground" Value="Black"/>
<Setter Property="FontSize" Value="13"/>
<Setter Property="Width" Value="70"/>
</Style>
</DataGridColumn.HeaderStyle>
</DataGridComboBoxColumn>

<DataGridCheckBoxColumn Header="Pass Exam?" Width="100"
Binding="{Binding Pass}"/>

<DataGridHyperlinkColumn Header="Email" Width="150"
Binding="{Binding Email}"/>
</DataGrid.Columns>
</DataGrid>

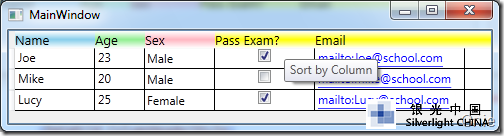

　　其效果如下圖所示，Name、Age、Sex 列會按各自的樣式顯示。未定義樣式的Pass Exam 和Email 列將按<DataGrid.ColumnHeaderStyle>全局定義顯示，并且當鼠標移置到這兩列上方時會有“Sort by Column”提示信息。

RowHeaderStyle 屬性

　　 列表頭介紹完了下面再來看看行表頭，其定義方式與列表頭相同，直接在<DataGrid>中加入<DataGrid.RowHeaderStyle>進行全局定義，見如下代碼：

<DataGrid.RowHeaderStyle>
    <Style TargetType="DataGridRowHeader">
        <Setter Property="Content" Value=" ·¤"/>
        <Setter Property="Width" Value="10"/>
        <Setter Property="Background">
            <Setter.Value>
                <LinearGradientBrush StartPoint="0,0" EndPoint="1,1">
                    <GradientStop Color="White" Offset="0"/>
                    <GradientStop Color="SkyBlue" Offset="1"/>
                </LinearGradientBrush>
            </Setter.Value>
        </Setter>
        <Style.Triggers>
            <Trigger Property="IsMouseOver" Value="True">
                <Setter Property="ToolTip" Value="Select this Row"/>
            </Trigger>
        </Style.Triggers>
    </Style>
</DataGrid.RowHeaderStyle>

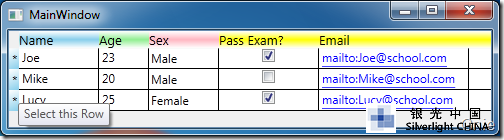

效果圖：

RowStyle 屬性

　　接下來我們來為行設置樣式，使每行的顏色變?yōu)樗{(lán)色，并且當鼠標移至行上方時，其背景顏色會變為灰色，文字顏色變?yōu)榘咨?/p>

<DataGrid.RowStyle>
    <Style TargetType="DataGridRow">
        <Setter Property="Background" Value="LightBlue" />
        <Style.Triggers>
            <Trigger Property="IsMouseOver" Value="True">
                <Setter Property="Background" Value="LightGray"/>
                <Setter Property="Foreground" Value="White"/>
            </Trigger>
        </Style.Triggers>
    </Style>
</DataGrid.RowStyle>

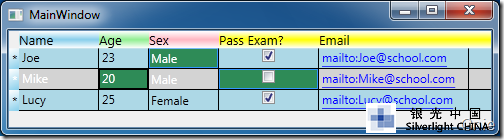

效果圖：

CellStyle 屬性

　　單元格部分我們繼續制作一個動態樣式，當鼠標點擊單元格后，其背景色將變?yōu)榫G色。

<DataGrid.CellStyle>
    <Style TargetType="DataGridCell">
        <Style.Triggers>
            <Trigger Property="IsSelected" Value="True">
                <Setter Property="Background" Value="SeaGreen"/>
            </Trigger>
        </Style.Triggers>
    </Style>
</DataGrid.CellStyle>

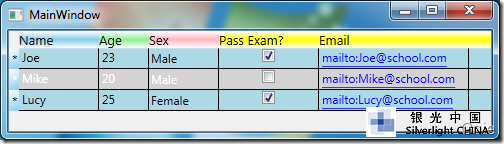

效果圖：
