概述:AnyChart是基于JavaScript (HTML5) 的圖表控件。使用AnyChart控件,可創建跨瀏覽器和跨平臺的交互式圖表和儀表。本教程將為您介紹如何使用如何添加多級別類別軸?。
# 界面/圖表報表/文檔/IDE等千款熱門軟控件火熱銷售中 >>
相關鏈接:
數據可視化任務
以下是客戶制定挑戰的任務:
我們有嵌套子類別的數據。如何在AnyChart的幫助下在堆疊列中顯示類別和子類別?

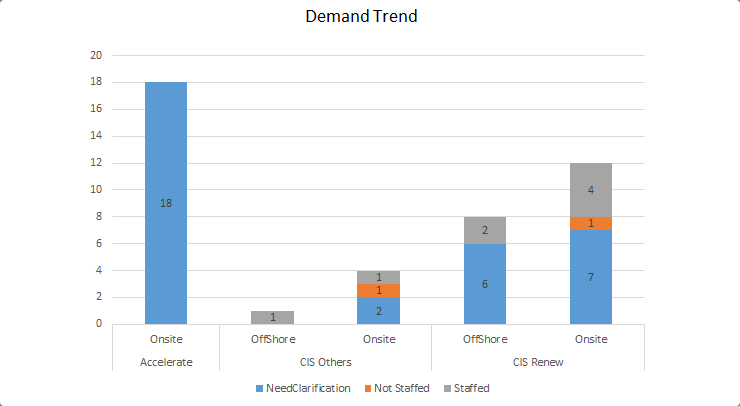

此外,客戶還分享了以下圖片,以說明他想使用AnyChart的JavaScript圖表庫創建的內容:
要根據此任務構建解決方案,這是我們需要的:
通過視圖和迭代器處理數據;
使用額外的軸;
使用自定義秤;
使用刻度蜱的重量。
方案概述
首先,讓我們修改源數據并在其中添加空值,以便按類別直觀地分隔數據。
然后,一旦繪制了圖表并完成了比例和界限的計算,我們將添加額外的軸。
在數據中查找組
將數據作為數據提供給圖表后,使用數據集不會停止。
借助mapAs方法,可以獲得不同的視圖,即按給定參數細分。我們將抓住這個機會。
然后,讓我們使用 迭代器對象來探索視圖,以便查找類別和子類別。
使用額外軸不作為軸
在我們要構建的JavaScript圖表中,我們將使用三個X軸,一個主軸和兩個額外軸。
一個X軸將是我們將完全用作軸的默認X軸。我們只會禁用自己的滴答聲。
另一個X軸將僅用于定位主要類別。我們不會顯示其刻度以及軸線。
第三個X軸將用于定位前兩個軸共用的刻度線。
補充計算的附加量表
軸使用刻度并基本上可視化它們。因此,為了實現這個想法,我們需要一個包含有關類別和子類別的數據的自定義比例。
我們將分析數據并創建一組刻度和類別名稱。然后我們將在那個尺度上構建軸。
使用Weights for Ticks作為可視化工具
為了獲得一個漂亮的圖片,其中不同的數據組彼此分開,讓我們修改數據并在其中插入空值。
之后,為了將視覺焦點從空點轉移到真實數據,我們將使用權重特征。
我們將得到的填充類型應該使得對這種可視化的數據的感知更有效。

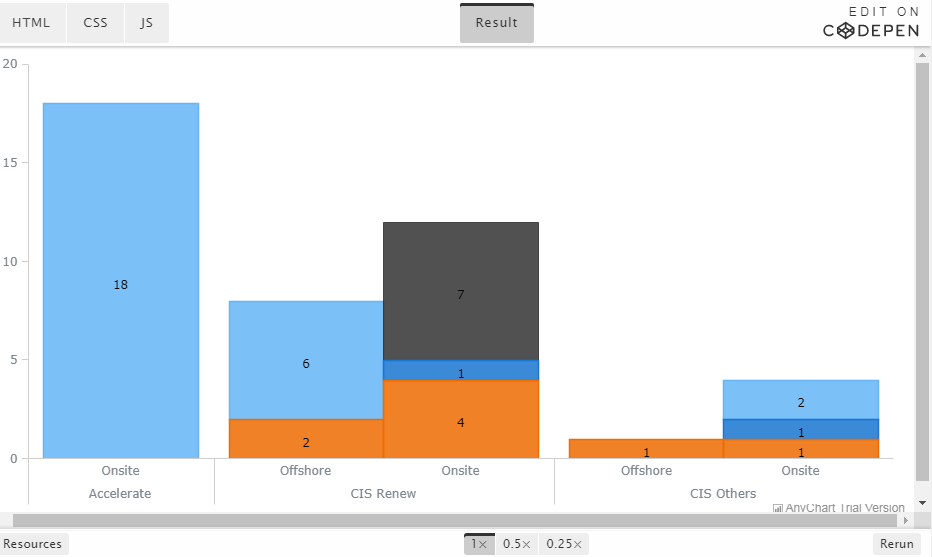

結果:具有多級別類別軸的交互式JavaScript圖表
使用多級別類別軸檢查圖表的代碼:
anychart.onDocumentReady(function () { var data = preprocessData([ ['Accelerate', 'Onsite', 18, NaN, NaN], ['CIS Renew', 'Offshore', 6, NaN, 2], ['CIS Renew', 'Onsite', 7, 1, 4], ['CIS Others', 'Offshore', NaN, NaN, 1], ['CIS Others', 'Onsite', 2, 1, 1] ]); var chart = anychart.column(); // configure global settings for series labels chart.labels({position:'center', fontColor:'#000'}); //add subcategory names to the meta of one of the series chart.column(data.mapAs({'value': 2, 'sub-category': 1})); chart.column(data.mapAs({'value': 3})); chart.column(data.mapAs({'value': 4})); // turn on stacking chart.yScale().stackMode('value'); // use subcategory names as names of X-axis ticks chart.xScale().names('sub-category'); // set a container and draw the chart chart.container('container'); chart.draw(); // calculate extra axes createTwoLevelAxis(chart, data, 0.1); }); function preprocessData(data){ // to make beautiful spacing between categories, add // several empty lines with the same category names to the data if (data.length > 0) { // add one to the beginning of the array data.unshift([data[0][0]]); // add one more to the end of the data data.push([data[data.length - 1][0]]); // add two empty items every time the category name changes, // to each category for (var i = 2; i < data.length - 2; i++) { var previous = data[i-1][0]; var current = data[i][0]; if (current!=previous) { data.splice(i, 0, [previous], [current]); i = i+2; } } } return anychart.data.set(data); } function createTwoLevelAxis(chart, data, padding){ // subcategory names var names = []; // ticks for axes based on on main categories var ticks = []; // weights of ticks (to make spacing between categories by using // the empty lines created in preprocessData) var weights = []; // the iterator feature allows us to go over data, so // create an iterator for the new breakdown var iter = data.mapAs({'category': 0, 'sub-category': 1}).getIterator(); while(iter.advance()) { var name = iter.get('category'); var value = iter.get('sub-category'); // store category names names.push(name); // when the border between categories is identified, create a tick if (name && names[names.length - 1] != names[names.length - 2]) { ticks.push(iter.getIndex()); } // assign weight to the tick weights.push(value?1:padding); } // create a custom scale var customScale = anychart.scales.ordinal(); // supply values from the chart to the scale customScale.values(chart.xScale().values()); // names of main categories only customScale.names(names); // weights for new ticks customScale.weights(weights); // synchronize weights with the chart scale chart.xScale().weights(weights); customScale.ticks(ticks); // disable ticks along the main axis chart.xAxis(0).ticks(false); // create an extra chart axis and hide its ticks and the axis line, leaving only labels displayed chart.xAxis(1) .scale(customScale) .stroke('none') .ticks(false); // draw one more extra axis without the axis line and labels, leaving only big ticks var additionalXaxis = chart.xAxis(2); additionalXaxis.scale(customScale); additionalXaxis.labels(false); additionalXaxis.stroke('none'); additionalXaxis.ticks() .length(46) .position('inside'); }
